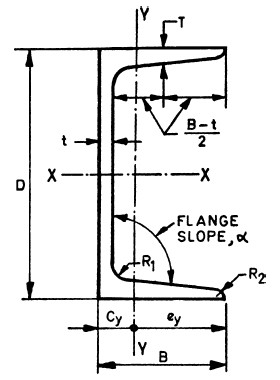

Dimensions Details
| Designation | Mass (Kg/m) | Sectional Area (sq.mm) | Depth (mm) | Breadth (mm) |
| MC 75 | 7.14 | 9.10 | 75 | 40 |
| MC 100 | 9.56 | 12.20 | 100 | 50 |
| MC 125 | 13.10 | 16.70 | 125 | 65 |
| MC 125* | 13.70 | 17.50 | 125 | 66 |
| MC 150 | 16.80 | 21.30 | 150 | 75 |
| MC 150* | 17.70 | 22.60 | 150 | 76 |
| MC 175 | 19.60 | 24.90 | 175 | 75 |
| MC 175* | 22.70 | 27.60 | 175 | 76 |
| MC 200 | 22.30 | 28.50 | 200 | 75 |
| MC 200* | 24.30 | 31.00 | 200 | 76 |
| MC 225 | 26.10 | 33.30 | 225 | 80 |
| MC 225* | 30.70 | 39.00 | 225 | 82 |
| MC 250 | 30.60 | 39.00 | 250 | 80 |
| MC 250* | 34.20 | 43.50 | 250 | 82 |
| MC 250* | 38.10 | 48.50 | 250 | 83 |
| MC 300 | 36.30 | 46.30 | 300 | 90 |
| MC 300* | 41.50 | 52.80 | 300 | 92 |
| MC 300* | 46.20 | 58.80 | 300 | 93 |
| MC 350 | 42.70 | 54.40 | 350 | 100 |
| MC 400 | 50.10 | 63.80 | 400 | 100 |
| Designation | Web Thickness t (mm) | Flange Thickness T (mm) | Flange Slope (mm) | R1 (mm) | R2 (mm) |
| MC 75 | 4.8 | 7.5 | 96 | 8.5 | 2.4 |
| MC 100 | 5.0 | 7.7 | 96 | 9.0 | 2.4 |
| MC 125 | 5.3 | 8.2 | 96 | 9.5 | 2.4 |
| MC 125* | 6.0 | 8.1 | 96 | 9.5 | 2.4 |
| MC 150 | 5.7 | 9.0 | 96 | 10.0 | 2.4 |
| MC 150* | 6.5 | 9.0 | 96 | 10.0 | 2.4 |
| MC 175 | 6.0 | 10.2 | 96 | 10.5 | 3.2 |
| MC 175* | 7.5 | 11.4 | 96 | 10.5 | 3.2 |
| MC 200 | 6.2 | 11.4 | 96 | 11.0 | 3.2 |
| MC 200* | 7.5 | 11.4 | 96 | 11.0 | 3.2 |
| MC 225 | 6.5 | 12.4 | 96 | 12.0 | 3.2 |
| MC 225* | 9.0 | 12.4 | 96 | 12.0 | 3.2 |
| MC 250 | 7.2 | 14.1 | 96 | 12.0 | 3.2 |
| MC 250* | 9.0 | 14.1 | 96 | 12.0 | 3.2 |
| MC 250* | 11.0 | 14.1 | 96 | 12.0 | 3.2 |
| MC 300 | 7.8 | 13.6 | 96 | 13.0 | 3.2 |
| MC 300* | 10.0 | 13.6 | 96 | 13.0 | 3.2 |
| MC 300* | 12.0 | 13.6 | 96 | 13.0 | 3.2 |
| MC 350 | 8.3 | 13.5 | 96 | 14.0 | 4.8 |
| MC 400 | 8.8 | 15.3 | 96 | 15.0 | 4.8 |
Sectional Properties
| Designation | Offset Cy (mm) | Ix (cm4) | Iy (cm4) |
| MC 75 | 1.32 | 78.5 | 12.9 |
| MC 100 | 1.54 | 192 | 26.7 |
| MC 125 | 1.95 | 425 | 61.1 |
| MC 125* | 1.92 | 435 | 64.4 |
| MC 150 | 2.20 | 788 | 103 |
| MC 150* | 2.17 | 813 | 110 |
| MC 175 | 2.19 | 1240 | 122 |
| MC 175* | 2.14 | 1310 | 136 |
| MC 200 | 2.20 | 1830 | 141 |
| MC 200* | 2.12 | 1910 | 151 |
| MC 225 | 2.31 | 2710 | 188 |
| MC 225* | 2.22 | 2960 | 219 |
| MC 250 | 2.30 | 3880 | 211 |
| MC 250* | 2.23 | 4080 | 244 |
| MC 250* | 2.19 | 4340 | 268 |
| MC 300 | 2.35 | 6420 | 313 |
| MC 300* | 2.26 | 6900 | 345 |
| MC 300* | 2.22 | 7350 | 375 |
| MC 350 | 2.44 | 10000 | 434 |
| MC 400 | 2.42 | 15200 | 508 |
| Designation | rx (cm) | ry (cm) | Zx (cm3) | Zy (cm3) |
| MC 75 | 2.94 | 1.19 | 20.9 | 4.81 |
| MC 100 | 3.97 | 1.48 | 33.5 | 7.71 |
| MC 125 | 5.05 | 1.91 | 68.1 | 13.4 |
| MC 125* | 4.98 | 1.92 | 69.6 | 13.8 |
| MC 150 | 6.08 | 2.20 | 105 | 19.5 |
| MC 150* | 6.00 | 2.20 | 108 | 20.2 |
| MC 175 | 7.04 | 2.21 | 141 | 23.0 |
| MC 175* | 6.89 | 2.22 | 150 | 24.5 |
| MC 200 | 8.02 | 2.22 | 181 | 26.4 |
| MC 200* | 7.85 | 2.21 | 191 | 27.5 |
| MC 225 | 9.02 | 2.37 | 241 | 33.0 |
| MC 225* | 8.71 | 2.37 | 263 | 36.0 |
| MC 250 | 9.92 | 2.37 | 307 | 38.5 |
| MC 250* | 9.68 | 2.37 | 326 | 40.9 |
| MC 250* | 9.46 | 2.35 | 347 | 43.2 |
| MC 300 | 11.8 | 2.60 | 428 | 47.1 |
| MC 300* | 11.4 | 2.56 | 460 | 49.8 |
| MC 300* | 11.2 | 2.52 | 490 | 52.2 |
| MC 350 | 13.6 | 2.82 | 576 | 57.3 |
| MC 400 | 15.4 | 2.82 | 760 | 67.0 |
