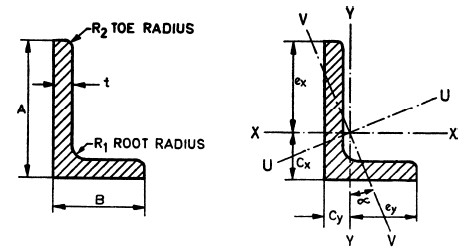

Unequal Leg Angles as per IS-808

Dimensions Details

Designation	Mass (Kg/m)	Sectional Area (sq.mm)	Length A (mm)	Length B (mm)
L 30 20×3	1.1	1.41	30	20
L 30 20×4	1.4	1.84	30	20
L 30 20×5	1.8	2.25	30	20
L 40 20×3	1.36	1.73	40	20
L 40 20×4	1.77	2.26	40	20
L 40 20×5	2.17	2.77	40	20
L 40 25×3	1.5	1.88	40	25
L 40 25×4	1.9	2.46	40	25
L 40 25×5	2.4	3.02	40	25
L 40 25×6	2.8	3.56	40	25
L 45 30×3	1.7	2.18	45	30
L 45 30×4	2.2	2.86	45	30
L 45 30×5	2.8	3.52	45	30
L 45 30×6	3.3	4.16	45	30
L 50 30×3	1.8	2.34	50	30
L 50 30×4	2.4	3.07	50	30
L 50 30×5	3.0	3.78	50	30
L 50 30×6	3.5	4.47	50	30
L 60 30×5	3.37	4.29	60	30
L 60 30×6	3.99	5.08	60	30
L 60 40×5	3.7	4.76	60	40
L 60 40×6	4.4	5.65	60	40
L 60 40×7	5.14	6.55	60	40
L 60 40×8	5.8	7.37	60	40
L 65 45×5	4.1	5.26	65	45
L 65 45×6	4.9	6.25	65	45
L 65 45×8	6.4	8.17	65	45
L 65 50×5	4.35	5.54	65	50
L 65 50×6	5.16	6.58	65	50
L 65 50×7	5.96	7.60	65	50
L 65 50×8	6.75	8.60	65	50
L 70 45×5	4.3	5.52	70	45
L 70 45×6	5.2	6.56	70	45
L 70 45×8	6.7	8.58	70	45
L 70 45×10	8.3	10.5	70	45
L 70 50×5	4.54	5.79	70	50
L 70 50×6	5.40	6.88	70	50
L 70 50×7	6.24	7.95	70	50
L 70 50×8	7.06	9.00	70	50
L 75 50×5	4.7	6.02	75	50
L 75 50×6	5.6	7.16	75	50
L 75 50×7	6.53	8.31	75	50
L 75 50×8	7.4	9.38	75	50
L 75 50×10	9.0	11.5	75	50
L 80 40×5	4.56	5.80	80	40
L 80 40×6	5.41	6.89	80	40
L 80 40×7	6.25	7.96	80	40
L 80 40×8	7.07	9.01	80	40
L 80 50×5	4.9	6.27	80	50
L 80 50×6	5.9	7.46	80	50
L 80 50×8	7.7	9.78	80	50
L 80 50×10	9.4	12.0	80	50
L 80 60×6	6.37	8.11	80	60
L 80 60×7	7.36	9.38	80	60
L 80 60×8	8.34	10.6	80	60
L 90 60×6	6.8	8.65	90	60
L 90 60×8	8.9	11.4	90	60
L 90 60×10	11.0	14.0	90	60
L 90 60×12	13.0	16.6	90	60
L 90 65×6	7.07	9.01	90	65
L 90 65×7	8.19	10.4	90	65
L 90 65×8	9.29	11.8	90	65
L 90 65×10	11.4	14.6	90	65
L 100 50×6	6.85	8.73	100	50
L 100 50×7	7.93	10.1	100	50
L 100 50×8	8.99	11.4	100	50
L 100 50×10	11.1	14.1	100	50
L 100 65×6	7.5	9.55	100	65
L 100 65×7	8.77	11.2	100	65
L 100 65×8	9.9	12.6	100	65
L 100 65×10	12.2	15.5	100	65
L 100 75×6	8.0	10.1	100	75
L 100 75×8	10.5	13.4	100	75
L 100 75×10	13.0	16.5	100	75
L 100 75×12	15.4	19.6	100	75
L 120 80×8	12.2	15.5	120	80
L 120 80×10	15.0	19.1	120	80
L 120 80×12	17.8	22.7	120	80
L 125 75×6	9.2	11.7	125	75
L 125 75×8	12.1	15.4	125	75
L 125 75×10	14.9	19.0	125	75
L 125 75×12	17.8	22.7	125	75
L 125 95×6	10.1	12.9	125	95
L 125 95×8	13.4	17.0	125	95
L 125 95×10	16.5	21.1	125	95
L 125 95×12	19.7	25.0	125	95
L 135 65×8	11.8	15.1	135	65
L 135 65×10	14.6	18.6	135	65
L 135 65×12	17.3	22.1	135	65
L 150 75×8	13.7	17.5	150	75
L 150 75×10	17.0	21.6	150	75
L 150 75×12	20.2	25.7	150	75
L 150 115×8	16.3	20.7	150	115
L 150 115×10	20.1	25.7	150	115
L 150 115×12	24.0	30.5	150	115
L 150 115×16	31.4	40.0	150	115
L 200 100×10	22.9	29.2	200	100
L 200 100×12	27.3	34.8	200	100
L 200 100×16	35.8	45.7	200	100
L 200 150×10	26.9	34.3	200	150
L 200 150×12	32.1	40.9	200	150
L 200 150×16	42.2	53.7	200	150
L 200 150×20	52.0	66.3	200	150
L 150 75×9	15.4	19.6	150	75
L 150 75×15	24.8	31.5	150	75
L 150 90×10	18.2	23.3	150	90
L 150 90×12	21.6	27.5	150	90
L 150 90×15	26.6	33.9	150	90
L 200 100×15	33.7	43.0	200	100
L 200 150×15	39.6	50.5	200	150
L 200 150×18	47.1	60.0	200	150

Designation	Thickness t (mm)	R1 (mm)	R2 (mm)
L 30 20×3	3.0	4.5	Reasonably Square
L 30 20×4	4.0	4.5	Reasonably Square
L 30 20×5	5.0	4.5	Reasonably Square
L 40 20×3	3.0	4.0	Reasonably Square
L 40 20×4	4.0	4.0	Reasonably Square
L 40 20×5	5.0	4.0	Reasonably Square
L 40 25×3	3.0	5.0	Reasonably Square
L 40 25×4	4.0	5.0	Reasonably Square
L 40 25×5	5.0	5.0	Reasonably Square
L 40 25×6	6.0	5.0	Reasonably Square
L 45 30×3	3.0	5.0	Reasonably Square
L 45 30×4	4.0	5.0	Reasonably Square
L 45 30×5	5.0	5.0	Reasonably Square
L 45 30×6	6.0	5.0	Reasonably Square
L 50 30×3	3.0	5.5	Reasonably Square
L 50 30×4	4.0	5.5	Reasonably Square
L 50 30×5	5.0	5.5	Reasonably Square
L 50 30×6	6.0	5.5	Reasonably Square
L 60 30×5	5.0	6.0	Reasonably Square
L 60 30×6	6.0	6.0	Reasonably Square
L 60 40×5	5.0	6.0	Reasonably Square
L 60 40×6	6.0	6.0	Reasonably Square
L 60 40×7	7.0	6.0	Reasonably Square
L 60 40×8	8.0	6.0	Reasonably Square
L 65 45×5	5.0	6.0	Reasonably Square
L 65 45×6	6.0	6.0	Reasonably Square
L 65 45×8	8.0	6.0	Reasonably Square
L 65 50×5	5.0	6.0	Reasonably Square
L 65 50×6	6.0	6.0	Reasonably Square
L 65 50×7	7.0	6.0	Reasonably Square
L 65 50×8	8.0	6.0	Reasonably Square
L 70 45×5	5.0	6.5	Reasonably Square
L 70 45×6	6.0	6.5	Reasonably Square
L 70 45×8	8.0	6.5	Reasonably Square
L 70 45×10	10.0	6.5	Reasonably Square
L 70 50×5	5.0	6.0	Reasonably Square
L 70 50×6	6.0	6.0	Reasonably Square
L 70 50×7	7.0	6.0	Reasonably Square
L 70 50×8	8.0	6.0	Reasonably Square
L 75 50×5	5.0	6.5	Reasonably Square
L 75 50×6	6.0	6.5	Reasonably Square
L 75 50×7	7.0	7.0	Reasonably Square
L 75 50×8	8.0	6.5	Reasonably Square
L 75 50×10	10.0	6.5	Reasonably Square
L 80 40×5	5.0	7.0	Reasonably Square
L 80 40×6	6.0	7.0	Reasonably Square
L 80 40×7	7.0	7.0	Reasonably Square
L 80 40×8	8.0	7.0	Reasonably Square
L 80 50×5	5.0	7.0	Reasonably Square
L 80 50×6	6.0	7.0	Reasonably Square
L 80 50×8	8.0	7.0	Reasonably Square
L 80 50×10	10.0	7.0	Reasonably Square
L 80 60×6	6.0	8.0	Reasonably Square
L 80 60×7	7.0	8.0	Reasonably Square
L 80 60×8	8.0	8.0	Reasonably Square
L 90 60×6	6.0	7.5	Reasonably Square
L 90 60×8	8.0	7.5	Reasonably Square
L 90 60×10	10.0	7.5	Reasonably Square
L 90 60×12	12.0	7.5	Reasonably Square
L 90 65×6	6.0	8.0	Reasonably Square
L 90 65×7	7.0	8.0	Reasonably Square
L 90 65×8	8.0	8.0	Reasonably Square
L 90 65×10	10.0	8.0	Reasonably Square
L 100 50×6	6.0	9.0	Reasonably Square
L 100 50×7	7.0	9.0	Reasonably Square
L 100 50×8	8.0	9.0	Reasonably Square
L 100 50×10	10.0	9.0	Reasonably Square
L 100 65×6	6.0	8.0	Reasonably Square
L 100 65×7	7.0	10.0	Reasonably Square
L 100 65×8	8.0	8.0	Reasonably Square
L 100 65×10	10.0	8.0	Reasonably Square
L 100 75×6	6.0	8.5	Reasonably Square
L 100 75×8	8.0	8.5	Reasonably Square
L 100 75×10	10.0	8.5	Reasonably Square
L 100 75×12	12.0	8.5	Reasonably Square
L 120 80×8	8.0	11.0	Reasonably Square
L 120 80×10	10.0	11.0	Reasonably Square
L 120 80×12	12.0	11.0	Reasonably Square
L 125 75×6	6.0	9.0	Reasonably Square
L 125 75×8	8.0	9.0	Reasonably Square
L 125 75×10	10.0	9.0	Reasonably Square
L 125 75×12	12.0	11.0	Reasonably Square
L 125 95×6	6.0	9.0	4.8
L 125 95×8	8.0	9.0	4.8
L 125 95×10	10.0	9.0	4.8
L 125 95×12	12.0	9.0	4.8
L 135 65×8	8.0	11	4.8
L 135 65×10	10.0	11	4.8
L 135 65×12	12.0	11	4.8
L 150 75×8	8.0	10.0	4.8
L 150 75×10	10.0	10.0	4.8
L 150 75×12	12.0	10.0	4.8
L 150 115×8	8.0	11.0	4.8
L 150 115×10	10.0	11.0	4.8
L 150 115×12	12.0	11.0	4.8
L 150 115×16	16.0	11.0	4.8
L 200 100×10	10.0	12.0	4.8
L 200 100×12	12.0	12.0	4.8
L 200 100×16	16.0	12.0	4.8
L 200 150×10	10.0	13.5	4.8
L 200 150×12	12.0	13.5	4.8
L 200 150×16	16.0	13.5	4.8
L 200 150×20	20.0	13.5	4.8
L 150 75×9	9.0	11	4.8
L 150 75×15	15.0	11	4.8
L 150 90×10	10.0	12	4.8
L 150 90×12	12.0	12	4.8
L 150 90×15	15.0	12	4.8
L 200 100×15	15.0	15	4.8
L 200 150×15	15.0	15	4.8
L 200 150×18	18.0	15	4.8

Sectional Properties

Designation	Offset Cx (mm)	Offset Cy (mm)	Tan Alpha	Ix (cm4)	Iy (cm4)
L 30 20×3	0.98	0.49	0.43	1.2	0.4
L 30 20×4	1.02	0.53	0.42	1.5	0.5
L 30 20×5	1.06	0.57	0.41	1.9	0.6
L 40 20×3	1.42	0.44	0.257	2.80	0.47
L 40 20×4	1.47	0.48	0.252	3.59	0.60
L 40 20×5	1.51	0.52	0.245	4.32	0.71
L 40 25×3	1.30	0.57	0.38	3.0	0.9
L 40 25×4	1.35	0.62	0.38	3.8	1.1
L 40 25×5	1.39	0.66	0.37	4.6	1.4
L 40 25×6	1.43	0.69	0.37	5.4	1.6
L 45 30×3	1.42	0.69	0.44	4.4	1.5
L 45 30×4	1.47	0.73	0.43	5.7	2.0
L 45 30×5	1.51	0.77	0.43	6.9	2.4
L 45 30×6	1.55	0.81	0.42	8.0	2.8
L 50 30×3	1.63	0.66	0.36	5.9	1.6
L 50 30×4	1.68	0.70	0.36	7.7	2.1
L 50 30×5	1.72	0.74	0.35	9.3	2.5
L 50 30×6	1.76	0.78	0.35	10.9	2.9
L 60 30×5	2.15	0.68	0.256	15.6	2.60
L 60 30×6	2.20	0.72	0.252	18.2	3.02
L 60 40×5	1.95	0.96	0.44	16.9	6.0
L 60 40×6	1.99	1.00	0.43	19.9	7.0
L 60 40×7	2.04	1.05	0.427	22.9	8.07
L 60 40×8	2.07	1.08	0.42	25.4	8.8
L 65 45×5	2.07	1.08	0.47	22.1	8.6
L 65 45×6	2.11	1.12	0.47	26.0	10.1
L 65 45×8	2.19	1.20	0.46	33.2	12.8
L 65 50×5	1.99	1.25	0.577	23.2	11.9
L 65 50×6	2.04	1.29	0.575	27.2	14.0
L 65 50×7	2.08	1.33	0.572	31.1	15.9
L 65 50×8	2.11	1.37	0.569	4.8	17.7
L 70 45×5	2.27	1.04	0.41	27.2	8.8
L 70 45×6	2.32	1.09	0.41	32.0	10.3
L 70 45×8	2.40	1.16	0.40	41.0	13.1
L 70 45×10	2.48	1.24	0.39	49.3	15.6
L 70 50×5	2.20	1.21	0.499	28.5	12.2
L 70 50×6	2.24	1.25	0.497	33.5	14.3
L 70 50×7	2.28	1.29	0.495	38.3	16.2
L 70 50×8	2.32	1.33	0.491	42.9	18.1
L 75 50×5	2.39	1.16	0.44	34.1	12.2
L 75 50×6	2.44	1.20	0.44	40.3	14.3
L 75 50×7	2.48	1.25	0.433	46.4	16.5
L 75 50×8	2.52	1.28	0.42	51.8	18.3
L 75 50×10	2.60	1.36	0.42	62.2	21.8
L 80 40×5	2.81	0.84	0.360	38.2	6.49
L 80 40×6	2.85	0.88	0.258	44.9	7.59
L 80 40×7	2.90	0.92	0.256	51.4	8.63
L 80 40×8	2.94	0.96	0.253	57.6	9.61
L 80 50×5	2.60	1.12	0.39	40.6	12.3
L 80 50×6	2.64	1.16	0.39	48.0	14.4
L 80 50×8	2.73	1.24	0.38	61.9	18.5
L 80 50×10	2.81	1.32	0.38	74.7	22.1
L 80 60×6	2.47	1.48	0.547	51.4	24.8
L 80 60×7	2.51	1.52	0.546	59.0	28.4
L 80 60×8	2.55	1.56	0.544	66.3	31.8
L 90 60×6	2.87	1.39	0.44	70.6	25.2
L 90 60×8	2.96	1.48	0.44	91.5	32.4
L 90 60×10	3.04	1.55	0.43	111	39.1
L 90 60×12	3.12	1.63	0.42	129	45.2
L 90 65×6	2.79	1.56	0.510	73.4	32.3
L 90 65×7	2.83	1.60	0.509	84.3	37.0
L 90 65×8	2.88	1.64	0.507	94.9	41.5
L 90 65×10	2.96	1.72	0.503	115	49.9
L 100 50×6	3.49	1.04	0.260	89.7	15.3
L 100 50×7	3.54	1.08	0.259	103	17.4
L 100 50×8	3.59	1.12	0.257	116	19.5
L 100 50×10	3.67	1.20	0.253	141	23.4
L 100 65×6	3.19	1.47	0.42	96.7	32.4
L 100 65×7	3.23	1.51	0.415	113	37.6
L 100 65×8	3.28	1.55	0.42	126	41.9
L 100 65×10	3.37	1.63	0.41	153	50.7
L 100 75×6	3.01	1.78	0.55	101	48.7
L 100 75×8	3.10	1.87	0.55	132	63.3
L 100 75×10	3.19	1.95	0.55	160	76.9
L 100 75×12	3.27	2.03	0.54	188	89.5
L 120 80×8	3.83	1.87	0.437	226	80.8
L 120 80×10	3.92	1.95	0.435	276	98.1
L 120 80×12	4.00	2.03	0.432	323	114
L 125 75×6	4.05	1.59	0.37	188	51.6
L 125 75×8	4.15	1.68	0.36	246	67.2
L 125 75×10	4.24	1.76	0.36	300	81.6
L 125 75×12	4.31	1.84	0.353	354	95.5
L 125 95×6	3.72	2.24	0.57	205	103
L 125 95×8	3.80	2.32	0.57	268	135
L 125 95×10	3.89	2.40	0.56	328	164
L 125 95×12	3.97	2.48	0.56	385	192
L 135 65×8	4.56	1.37	0.261	263	44 .8
L 135 65×10	4.65	1.45	0.258	320	54.2
L 135 65×12	4.74	1.53	0.255	375	63.0
L 150 75×8	5.24	1.54	0.26	410	71.1
L 150 75×10	5.33	1.62	0.28	502	86.3
L 150 75×12	5.42	1.70	0.26	590	100
L 150 115×8	4.48	2.76	0.58	474	244
L 150 115×10	4.57	2.84	0.58	582	299
L 150 115×12	4.65	2.92	0.57	685	351
L 150 115×16	4.81	3.07	0.57	878	447
L 200 100×10	6.98	2.03	0.27	1230	215
L 200 100×12	7.07	2.11	0.26	1450	251
L 200 100×16	7.23	2.27	0.26	1870	320
L 200 150×10	6.02	3.55	0.56	1410	689
L 200 150×12	6.11	3.63	0.55	1670	812
L 200 150×16	6.27	3.79	0.55	2150	1040
L 200 150×20	6.42	3.94	0.55	2620	1260
L 150 75×9	5.27	1.57	0.264	456	78.3
L 150 75×15	5.53	1.81	0.254	713	120
L 150 90×10	5.00	2.04	0.360	533	146
L 150 90×12	5.08	2.12	0.358	627	171
L 150 90×15	5.21	2.23	0.354	761	205
L 200 100×15	7.16	2.22	0.259	1760	299
L 200 150×15	6.21	3.73	0.550	2020	979
L 200 150×18	6.33	3.85	0.548	2380	1150

Designation	Iu(max) (cm4)	Iv(Min) (cm4)	rx (cm)	ry (cm)
L 30 20×3	1.4	0.2	0.92	0.54
L 30 20×4	1.8	0.3	0.92	054
L 30 20×5	2.1	0.4	0.91	0.53
L 40 20×3	2.96	0.31	1.27	0.52
L 40 20×4	3.80	0.39	1.26	0.51
L 40 20×5	4.55	0.48	1.25	0.51
L 40 25×3	3.3	0.5	1.25	0.68
L 40 25×4	4.3	0.7	1.25	0.68
L 40 25×5	5.1	0.8	1.24	0.67
L 40 25×6	5.9	1.0	1.23	0.66
L 45 30×3	5.0	0.9	1.42	0.84
L 45 30×4	6.5	1.1	1.41	0.84
L 45 30×5	7.9	1.4	1.40	0.83
L 45 30×6	9.2	1.7	1.39	0.82
L 50 30×3	6.5	1.0	1.59	0.83
L 50 30×4	8.5	1.2	1.58	0.82
L 50 30×5	10.3	1.5	1.57	0.81
L 50 30×6	11.9	1.8	1.56	0.80
L 60 30×5	16.5	1.69	1.90	0.78
L 60 30×6	19.2	1.99	1.89	0.77
L 60 40×5	19.5	3.4	1.89	1.12
L 60 40×6	22.3	4.0	1.88	1.11
L 60 40×7	26.3	4.75	1.87	1.11
L 60 40×8	29.0	5.2	1.86	1.10
L 65 45×5	25.9	4.8	2.05	1.28
L 65 45×6	30.4	5.7	2.04	1.27
L 65 45×8	38.7	7.4	2.02	1.25
L 65 50×5	28.8	6.32	2.05	1.47
L 65 50×6	33.8	7.43	2.03	1.46
L 65 50×7	38.5	8.51	2.02	1.45
L 65 50×8	43.0	9.57	2.01	1.44
L 70 45×5	30.9	5.1	2.22	1.26
L 70 45×6	36.3	6.0	2.21	1.25
L 70 45×8	46.3	7.8	2.19	1.24
L 70 45×10	55.4	9.5	2.16	1.22
L 70 50×5	33.9	6.76	2.22	1.45
L 70 50×6	39.9	7.94	2.21	1.44
L 70 50×7	45.5	9.10	2.20	1.43
L 70 50×8	50.8	10.2	2.18	1.42
L 75 50×5	39.4	6.9	2.38	1.42
L 75 50×6	46.4	8.2	2.37	1.41
L 75 50×7	53.3	9.57	2.36	1.41
L 75 50×8	59.4	10.6	2.85	1.40
L 75 50×10	71.2	12.9	2.33	1.38
L 80 40×5	40.5	4.19	2.56	1.06
L 80 40×6	47.6	4.92	2.55	1.05
L 80 40×7	54.4	5.64	2.54	1.04
L 80 40×8	60.9	6.33	2.53	1.03
L 80 50×5	45.7	7.2	2.55	1.40
L 80 50×6	53.9	8.5	2.54	1.39
L 80 50×8	69.3	11.0	2.52	1.37
L 80 50×10	83.3	13.5	2.49	1.36
L 80 60×6	62.8	13.4	2.52	1.75
L 80 60×7	72.0	15.4	2.51	1.74
L 80 60×8	80.8	17.3	2.50	1.73
L 90 60×6	81.5	14.3	2.86	1.71
L 90 60×8	105	18.6	2.84	1.69
L 90 60×10	127	22.8	2.81	1.67
L 90 60×12	148	26.8	2.79	1.65
L 90 65×6	87.9	17.8	2.85	1.89
L 90 65×7	101	20.4	2.84	1.88
L 90 65×8	113	23.0	2.83	1.87
L 90 65×10	137	27.9	2.81	1.85
L 100 50×6	95.1	9.85	3.21	1.32
L 100 50×7	109	11.3	3.20	1.31
L 100 50×8	123	12.7	3.18	1.31
L 100 50×10	149	15.4	3.16	1.29
L 100 65×6	111	18.6	3.18	1.84
L 100 65×7	128	22.0	3.17	1.83
L 100 65×8	144	24.2	3.16	1.83
L 100 65×10	174	29.7	3.14	1.81
L 100 75×6	124	25.6	3.15	2.19
L 100 75×8	161	33.6	3.14	2.18
L 100 75×10	196	41.2	3.12	2.16
L 100 75×12	228	48.6	3.10	2.14
L 120 80×8	260	46.6	3.82	2.28
L 120 80×10	317	56.8	3.80	2.26
L 120 80×12	371	66.6	3.77	2.24
L 125 75×6	209	30.5	4.01	2.10
L 125 75×8	273	40.0	4.00	2.09
L 125 75×10	333	49.1	3.97	2.07
L 125 75×12	391	58.8	3.95	2.05
L 125 95×6	254	55.1	3.99	2.83
L 125 95×8	331	71.7	3.97	2.81
L 125 95×10	404	87.6	3.95	2.79
L 125 95×12	474	103	3.92	2.77
L 135 65×8	278	28.9	4.17	1.72
L 135 65×10	339	35.2	4.15	1.71
L 135 65×12	397	41.2	4.12	1.69
L 150 75×8	436	45.7	4.88	2.02
L 150 75×10	533	55.7	4.82	2.00
L 150 75×12	625	66.4	4.79	1.98
L 150 115×8	590	129	4.78	3.45
L 150 115×10	723	158	4.76	3.41
L 150 115×12	849	186	4.74	3.39
L 150 115×16	1090	239	4.69	3.34
L 200 100×10	1300	138	6.48	2.71
L 200 100×12	1540	162	6.46	2.69
L 200 100×16	1980	208	6.40	2.66
L 200 150×10	1730	368	6.41	4.48
L 200 150×12	2040	434	6.39	4.46
L 200 150×16	2640	561	6.33	4.41
L 200 150×20	3180	683	6.28	4.36
L 150 75×9	484	50.0	4.83	2.00
L 150 75×15	754	78.8	4.75	1.94
L 150 90×10	591	88.3	4.80	2.51
L 150 90×12	694	104	4.77	2.49
L 150 90×15	841	126	4.74	2.46
L 200 100×15	1860	194	6.40	2.64
L 200 150×15	2480	527	6.33	4.40
L 200 150×18	2900	620	6.29	4.37

Designation	ru(max) (cm4)	rv(max) (cm4)	zx (cm3)	zy (cm3)
L 30 20×3	0.99	0.41	0.6	0.3
L 30 20×4	0.98	0.41	8.0	0.4
L 30 20×5	0.97	0.41	1.0	0.4
L 40 20×3	1.31	0.42	1.09	0.30
L 40 20×4	1.30	0.42	1.42	0.39
L 40 20×5	1.28	0.42	1.73	0.48
L 40 25×3	1.33	0.52	1.1	0.5
L 40 25×4	1.32	0.52	1.4	0.6
L 40 25×5	1.31	0.52	1.8	0.7
L 40 25×6	1.29	0.52	2.1	0.9
L 45 30×3	1.52	0.63	1.4	0.7
L 45 30×4	1.51	0.63	1.9	0.9
L 45 30×5	1.50	0.63	2.3	1.1
L 45 30×6	1.49	0.63	2.7	1.3
L 50 30×3	1.67	0.65	1.7	0.7
L 50 30×4	1.66	0.63	2.3	0.9
L 50 30×5	1.65	0.63	2.8	1.1
L 50 30×6	1.64	0.63	3.4	1.3
L 60 30×5	1.96	0.63	4.04	1.12
L 60 30×6	1.95	0.63	4.78	1.32
L 60 40×5	2.02	0.85	4.2	2.0
L 60 40×6	2.01	0.85	5.0	2.3
L 60 40×7	2.00	0.85	5.79	2.74
L 60 40×8	1.98	0.84	6.5	3.0
L 65 45×5	2.22	0.96	5.0	2.5
L 65 45×6	2.21	0.95	5.9	3.0
L 65 45×8	2.18	0.95	7.7	3.9
L 65 50×5	2.28	1.07	5.14	2.19
L 65 50×6	2.27	1.06	6.10	3.77
L 65 50×7	2.25	1.06	7.03	4.34
L 65 50×8	2.23	1.05	7.93	4.85
L 70 45×5	2.36	0.96	5.7	2.5
L 70 45×6	2.35	0.96	6.8	3.0
L 70 45×8	2.32	0.95	8.9	3.9
L 70 45×10	2.29	0.95	10.9	4.8
L 70 50×5	2.42	1.08	5.90	3.21
L 70 50×6	2.41	1.07	7.04	3.01
L 70 50×7	2.39	1.07	8.12	4.28
L 70 50×8	2.38	1.07	9.17	4.93
L 75 50×5	2.56	1.07	6.7	3.2
L 75 50×6	2.55	1.07	8.0	3.8
L 75 50×7	2.53	1.07	9.24	4.39
L 75 50×8	2.52	1.06	10.4	4.9
L 75 50×10	2.49	1.06	12.7	6.0
L 80 40×5	2.64	0.85	7.35	2.06
L 80 40×6	2.63	0.85	8.73	2.44
L 80 40×7	2.61	0.84	10.1	2.81
L 80 40×8	2.60	0.84	11.4	3.15
L 80 50×5	2.70	1.07	7.5	3.2
L 80 50×6	2.69	1.07	9.0	3.8
L 80 50×8	2.66	1.06	11.7	4.9
L 80 50×10	2.63	1.06	14.4	6.0
L 80 60×6	2.78	1.29	9.29	5.49
L 80 60×7	2.77	1.28	10.7	6.34
L 80 60×8	2.76	1.28	12.2	7.16
L 90 60×6	3.07	1.28	11.5	5.5
L 90 60×8	3.04	1.28	15.1	7.2
L 90 60×10	3.01	1.27	18.6	8.8
L 90 60×12	2.98	1.27	22.0	10.3
L 90 65×6	3.12	1.41	11.8	6.53
L 90 65×7	3.11	1.40	13.7	7.55
L 90 65×8	3.10	1.39	15.5	8.54
L 90 65×10	3.07	1.38	19.0	10.4
L 100 50×6	3.30	1.06	13.8	3.88
L 100 50×7	3.29	1.06	16.0	4.44
L 100 50×8	3.28	1.05	18.1	5.03
L 100 50×10	3.25	1.05	22.2	6.17
L 100 65×6	3.40	1.39	14.2	6.4
L 100 65×7	3.39	1.40	16.6	7.53
L 100 65×8	3.38	1.39	18.7	8.5
L 100 65×10	3.35	1.38	23.1	10.4
L 100 75×6	3.50	1.59	14.4	8.5
L 100 75×8	3.48	1.59	19.1	11.2
L 100 75×10	3.45	1.58	23.6	13.0
L 100 75×12	3.42	1.58	27.9	16.3
L 120 80×8	4.10	1.73	27.6	13.2
L 120 80×10	4.07	1.72	34.1	16.2
L 120 80×12	4.04	1.71	40.4	19.1
L 125 75×6	4.23	1.62	22.2	8.7
L 125 75×8	4.21	1.61	29.4	11.5
L 125 75×10	4.18	1.61	36.5	14.2
L 125 75×12	4.15	1.61	43.2	16.9
L 125 95×6	4.43	2.07	23.4	14.3
L 125 95×8	4.41	2.05	30.9	18.8
L 125 95×10	4.38	2.04	38.1	23.1
L 125 95×12	4.35	2.03	45.1	27.3
L 135 65×8	4.30	1.38	31.1	8.72
L 135 65×10	4.27	1.37	38.4	10.7
L 135 65×12	4.24	1.57	45.4	12.7
L 150 75×8	4.99	1.62	42.0	11.9
L 150 75×10	4.96	1.61	51.9	14.7
L 150 75×12	4.93	1.60	61.6	17.3
L 150 115×8	5.33	2.50	45.1	28.0
L 150 115×10	5.31	2.48	55.8	34.5
L 150 115×12	5.28	2.47	66.2	40.8
L 150 115×16	5.21	2.44	86.2	53.0
L 200 100×10	6.68	2.17	94.3	26.9
L 200 100×12	6.65	2.16	112	31.9
L 200 100×16	6.59	2.13	147	41.3
L 200 150×10	7.10	3.28	101	60.2
L 200 150×12	7.07	3.26	120	71.4
L 200 150×16	7.01	3.23	157	93.2
L 200 150×20	6.94	3.21	193	114
L 150 75×9	4.98	1.60	46.9	13.2
L 150 75×15	4.88	1.58	75.3	21.0
L 150 90×10	5.05	1.95	53.3	21.0
L 150 90×12	5.02	1.94	63.3	24.8
L 150 90×15	4.98	1.93	77.7	30.4
L 200 100×15	6.58	2.13	137	38.4
L 200 150×15	7.00	3.23	147	86.9
L 200 150×18	6.95	3.21	174	103

Unequal Leg Angles as per IS-808

Dimensions Details

Sectional Properties

Share this:
