Dimensions Details
| Designation | Mass (Kg/m) | Sectional Area (sq.mm) | Depth (mm) | Breadth (mm) |
| WB 150 | 17.0 | 21.7 | 150 | 100 |
| WB 175 | 22.1 | 28.1 | 175 | 125 |
| WB 200 | 28.8 | 36.7 | 200 | 140 |
| WB 200* | 52.0 | 66.5 | 203 | 152 |
| WB 225 | 33.9 | 43.2 | 225 | 150 |
| WB 250 | 40.9 | 52.0 | 250 | 200 |
| WB 300 | 48.1 | 61.3 | 300 | 200 |
| WB 350 | 56.9 | 72.5 | 350 | 200 |
| WB 400 | 66.7 | 85.0 | 400 | 200 |
| WB 450 | 79.4 | 101 | 450 | 200 |
| WB 500 | 95.2 | 121 | 500 | 250 |
| WB 550 | 112 | 143 | 550 | 250 |
| WB 600 | 134 | 170 | 600 | 250 |
| WB 600 | 145 | 185 | 600 | 250 |
| Designation | Mass (Kg/m) | Sectional Area (sq.mm) | Depth (mm) | Breadth (mm) |

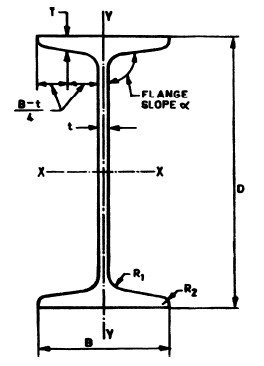

| Designation | Web Thickness (mm) | Flange Thickness (mm) | Flange Slope (mm) | R1 (mm) | R2 (mm) |
| WB 150 | 5.4 | 7.0 | 96.0 | 8.0 | 4.0 |
| WB 175 | 5.8 | 7.4 | 96.0 | 8.0 | 4.0 |
| WB 200 | 6.1 | 9.0 | 96.0 | 9.0 | 4.5 |
| WB 200* | 8.9 | 16.5 | 98.0 | 15.5 | 7.6 |
| WB 225 | 6.4 | 9.9 | 96.0 | 9.0 | 4.5 |
| WB 250 | 6.7 | 9.0 | 96.0 | 10.0 | 5.0 |
| WB 300 | 7.4 | 10.0 | 96.0 | 11.0 | 5.5 |
| WB 350 | 8.0 | 11.4 | 96.0 | 12.0 | 6.0 |
| WB 400 | 8.6 | 13.0 | 96.0 | 13.0 | 6.5 |
| WB 450 | 9.2 | 15.4 | 96.0 | 15.0 | 7.0 |
| WB 500 | 9.9 | 14.7 | 96.0 | 15.0 | 7.5 |
| WB 550 | 10.5 | 17.6 | 96.0 | 16.0 | 8.0 |
| WB 600 | 11.2 | 21.3 | 96.0 | 17.0 | 8.5 |
| WB 600 | 11.8 | 23.6 | 96.0 | 18.0 | 9.0 |
| Designation | Web Thickness (mm) | Flange Thickness (mm) | Flange Slope (mm) | R1 (mm) | R2 (mm) |
Sectional Properties
| Designation | Ix (cm4) | Iy (cm4) | rx (cm) | ry (cm) | Zx (cm3) | Zy (cm3) |
| WB 150 | 839 | 94.8 | 6.22 | 2.09 | 112 | 19.0 |
| WB 175 | 1510 | 189 | 7.33 | 2.59 | 173 | 30.2 |
| WB 200 | 2620 | 329 | 8.46 | 2.99 | 263 | 47.0 |
| WB 200* | 4790 | 814 | 8.48 | 3.54 | 471 | 107 |
| WB 225 | 3920 | 449 | 9.52 | 3.22 | 349 | 59.8 |
| WB 250 | 5940 | 858 | 10.7 | 4.06 | 475 | 85.7 |
| WB 300 | 9820 | 990 | 12.7 | 4.02 | 655 | 99.0 |
| WB 350 | 15500 | 1180 | 14.6 | 4.03 | 887 | 118 |
| WB 400 | 23400 | 1390 | 16.6 | 4.04 | 1170 | 139 |
| WB 450 | 35100 | 1710 | 18.6 | 4.11 | 1560 | 171 |
| WB 500 | 52300 | 2990 | 20.8 | 4.96 | 2080 | 239 |
| WB 550 | 74900 | 3740 | 22.9 | 5.11 | 2720 | 299 |
| WB 600 | 106000 | 4700 | 25.0 | 5.24 | 3540 | 376 |
| WB 600 | 116000 | 5300 | 25.0 | 5.35 | 3850 | 424 |
| Designation | Ix (cm4) | Iy (cm4) | rx (cm) | ry (cm) | Zx (cm3) | Zy (cm3) |
